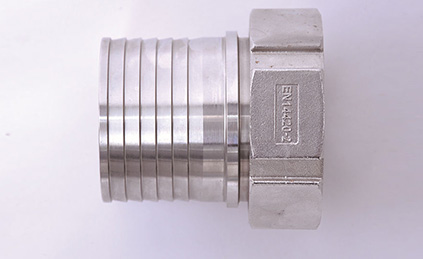

GI with Serraied Tail in Stainless Steel

Inquire Now Previous Next
Product Detail

Product

GI with serraied tail in stainless steel

Thread connections EN 14420-5

Hose Fitting with Safety Clamps


Application

DIN 2817 fitting & safely clamp are used for chemical, food and drink, petrochemicals, airport refuelling, liquefied gas, etc.


Material for GA/GI

Stainless steel AISI316/AISI304 by investment casting


Features

1. Standards:

Safety clamps comply to standard of EN14420-3

Hose fitting GA/GI comply to standard of EN14420-5


2. Size:

Safety clamps available from DN13 to DN150

Hose fitting GA/Gl available from 1/2'' to 4”


Name Thread Tail¢ (mm)
GIS015SS G1/2" 13.4
GIS020SS G3/4" 19.4
GIS025SS G1" 25.4
GIS032SS G11/4" 32.4
GIS040SS G11/2" 38.4
GIS050SS G2" 50.4
GIS065SS G21/2" 63.2
GIS075SS G3" 75.4
GIS100SS G4" 100.3
