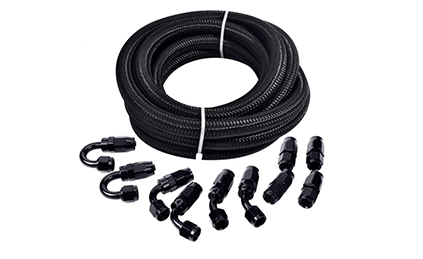

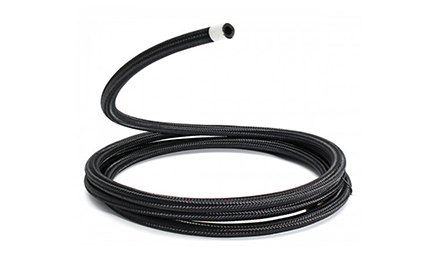

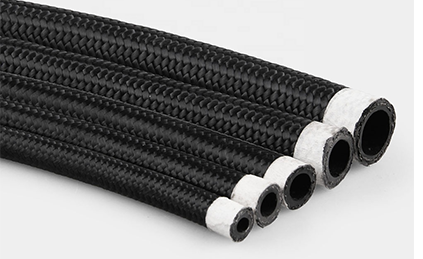

Item:Black Nylon Braided Oil Cooler Rubber Hose

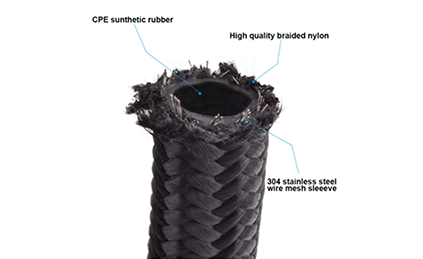

Tube material: CPE
Reinforcement: Stainless Steel Wire Braided
Cover: Black Nylon Fiber
Standard: DOT/SAE J1532
| Product Number | Hose ID | OD | W.P | B.P | Bending radius | Temperature Range | Weight | |
| mm | mm | psi | psi | mm | min | max | kg/m | |
| AN4 | 5.56 | 11.17 | 500 | 2000 | 50.8 | -40 | 120 | 0.11 |
| AN6 | 8.73 | 14.22 | 500 | 2000 | 63.5 | -40 | 120 | 0.15 |
| AN8 | 11.13 | 17.20 | 500 | 2000 | 88.9 | -40 | 120 | 0.19 |
| AN10 | 14.29 | 20.83 | 500 | 2000 | 101.6 | -40 | 120 | 0.24 |
| AN12 | 17.46 | 24.38 | 500 | 2000 | 114.3 | -40 | 120 | 0.3 |
| AN16 | 22.22 | 29.96 | 348 | 1392 | 126.2 | -40 | 120 | |
| AN20 | 28.5 | 36.53 | 348 | 1392 | 139.7 | -40 | 120 | |
