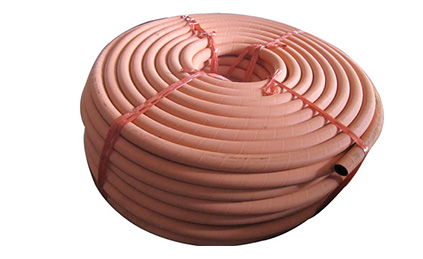

Water Hose

Inquire Now Previous Next Product
Product Detail

Application:

Delivering industrial water, has a wide range service in industry manufacture, mining , construction project and air tools.

Characteristics: flexible, aging-resistance, ozone resistance

Working temperature: -20 TO 80 ℃

Delivery cycle: As your order(2000 meters per day).

Type of shipping: Tianjin port or Qingdao port.

Safety factor: 1:3

Notes: Not bend over bending diameter ,not squeeze over, Avoid colliding flange surface.

Technical parameters:

Hose lining: SBR

Reinforcement layer: tire cord with helix steel wire

Cover rubber layer: SBR and CR blend


ID

OD

WP

BP

Bending Radius

Plies

Weight

Length

mm

inch

mm

inch

Mpa

bar

Mpa

bar

mm

B

kg/m

m

10

3/8"

18

3/4"

2.5

25

7.5

75

130

1

0.3

20-50

12

1/2"

23

7/8"

2.5

25

7.5

75

180

1

0.46

20-50

16

5/8"

26

1"

2

20

6

60

205

1

0.53

20-50

19

3/4"

29

1-1/4"

2

20

6

60

240

1

0.6

20-50

22

7/8"

32

1-1/4"

1.5

15

4.5

45

280

1

0.8

20-50

25

1"

35

1-2/5"

1.5

15

4.5

45

300

1

0.93

20-50

32

1-1/4"

42

1-5/8"

1.5

15

4.5

45

420

2

1.25

20-50

38

1-1/2"

48

1-7/8"

1.2

12

3.6

36

500

2

1.47

20-50

45

1-3/4"

56

2-1/4"

1.2

12

3.6

36

600

2

1.76

20-50

50

2"

64

2-1/2"

1.2

12

3.6

36

630

2

1.92

20-50

57

2-1/4"

70

2-4/5"

1.2

12

3.6

36

855

2

2.1

20-50

63

2-1/2"

78

3"

1

10

3

30

960

2

2.56

20-50

76

3"

90

3-1/2"

1

10

3

30

1140

2

2.96

20-50

90

3-1/2"

104

4"

0.8

8

2.4

24

1350

2

3.7

20-50

100

4"

116

4-5/8"

0.8

8

2.4

24

1530

2

4.22

20-50

NOTE: We can produce any specification and property according to customers is requirements.
