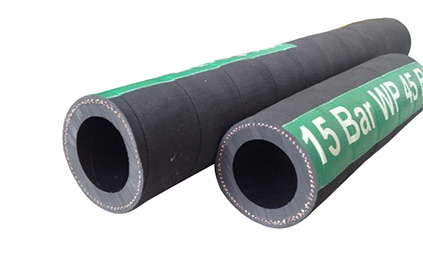

Sandblast Hose

Inquire Now Previous

Product Detail

Application: handles castings, steel, stone, sand, cement and other abrasive materials in sandblasting service.

Characteristics: high tensile; wear, weather, ozone and aging resistance

Working temperature: -20 TO 80℃

Delivery cycle: As your order(2000 meters per day).

Type of shipping: Tianjin port or Qingdao port.

Safety factor: 1:3

Notes: Not bend over bending diameter ,not squeeze over, Avoid colliding flange surface.

Technical parameters:

Hose lining: NR, SBR, BR blend

Reinforcement layer: tire cord with helix wire

Cover rubber layer: SBR

ID		OD		Length		Bend radius		WP		Weight
in	mm	in	mm	Ft	M	in	mm	Psi	Kg/cm²	Kg/m
1	25.4	1.701	43.2	200	60	6	150	200	15	1.38
1-1/4	31.8	1.953	49.6	200	60	8	200	200	15	1.6
1-1/2	38.1	2.232	56.7	200	60	10	250	200	15	1.91
2	50.8	2.772	70.4	200	60	12	300	150	10	2.6
2-1/2	63.5	3.272	83.1	200	60	15	375	150	10	3.1
3	76.2	3.811	96.8	200	60	20	500	150	10	3.95
4	101.6	5.047	128.2	200	60	28	700	150	10	6.48
5	127	6.091	154.7	100	30	40	1000	150	10	8.48
6	152.4	7.177	182.3	100	30	48	1200	150	10	11.07
Remark：We can produce any specification and property according to customers’ requirements
