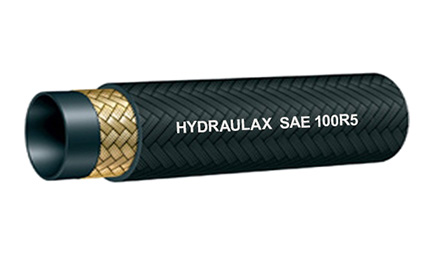

Inner tube:Oil-resistant synthetic rubber
Reinforcement: One fiber braid,and one steel wire braid
Outer cover: Braided fiber
Temp. range: -40°C to + 100°C
Recommended for air brake, fuel, grease lines, high temperature petroleum oils and medium pressure hydraulic applications
| Product Number | Hose ID | O.D. | Max W.P. | Min B.P. | Min B.R. | Weight | ||
| mm | in | mm | Bar | psi | psi | mm | kg/m | |
| R5-05 | 4.8 | 3/16" | 13.2 | 207 | 3002 | 11992 | 76 | 0.21 |
| R5-06 | 6.8 | 1/4" | 15 | 207 | 3002 | 11992 | 86 | 0.27 |
| R5-08 | 8 | 5/16" | 17 | 155 | 2248 | 9005 | 102 | 0.34 |
| R5-10 | 10.5 | 13/32" | 19.5 | 138 | 2001 | 8004 | 117 | 0.39 |
| R5-13 | 12.7 | 1/2" | 23.5 | 121 | 1746 | 6984 | 140 | 0.53 |
| R5-16 | 16 | 5/8" | 27.5 | 103 | 1494 | 5976 | 165 | 0.65 |
| R5-22 | 22 | 7/8" | 31.5 | 55 | 798 | 3192 | 183 | 0.64 |
| R5-28 | 28 | 1 1/8" | 38 | 43 | 624 | 2496 | 229 | 0.91 |
| R5-35 | 35 | 1 3/8" | 44.5 | 34 | 493 | 1972 | 267 | 1 |
| R5-46 | 46 | 1 13/16" | 56.4 | 24 | 348 | 1392 | 337 | 1.48 |
