Inner tube:PTFE
Reinforcement: Type 304 Stainless Steel
Outer cover: Type 304 Stainless Steel
Temp. range: -30°C to + 260°C
R14 PTFE Hose is the ideal hose for steam, solvents, fuels,hydraulic fluids, most chemicals and acids.Vibration absorption and high temperature and pressure ranges make PTFE hose extremely versatile.

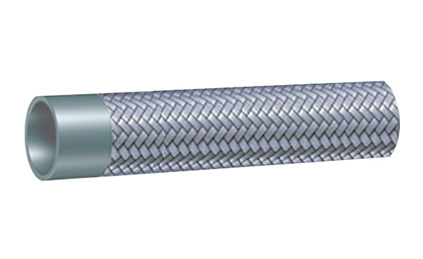

PTFE Inner tube with Type 304 Stainless outer braid
Use R14 Reusable Hose fittings
Product Number | Hose ID | O.D. | Max W.P. | Min B.P. | Min B.R. | Weight | ||
mm | in | mm | bar | psi | psi | mm | kg/m | |
R14-03 | 3.5 | 1/8" | 6.5 | 320 | 4640 | 15660 | 25 | 0.06 |
R14-05 | 5 | 3/16" | 8 | 242 | 3509 | 10527 | 35 | 0.07 |
R14-06 | 6 | 1/4" | 8.7 | 211 | 3060 | 10411 | 45 | 0.09 |
R14-06 | 6.5 | 1/4" | 9.5 | 210 | 3045 | 9860 | 45 | 0.09 |
R14-08 | 8 | 5/16" | 11 | 188 | 2726 | 8990 | 50 | 0.13 |
R14-10 | 10 | 3/8" | 13 | 185 | 2683 | 7830 | 55 | 0.15 |
R14-13 | 12.7 | 1/2" | 16.3 | 127 | 1840 | 5220 | 70 | 0.21 |
R14-16 | 16 | 5/8" | 19.5 | 106 | 1537 | 3625 | 130 | 0.26 |
R14-19 | 19 | 3/4" | 22.7 | 78 | 1131 | 3233 | 190 | 0.32 |
R14-22 | 22.2 | 7/8" | 26.3 | 60 | 870 | 4045 | 220 | 0.39 |
R14-25 | 25 | 1" | 29.5 | 40 | 580 | 2828 | 270 | 0.45 |
