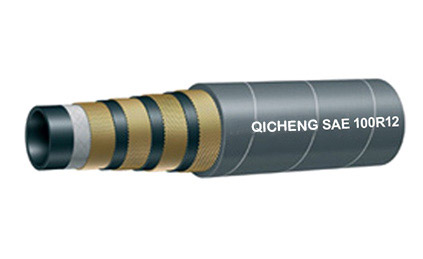

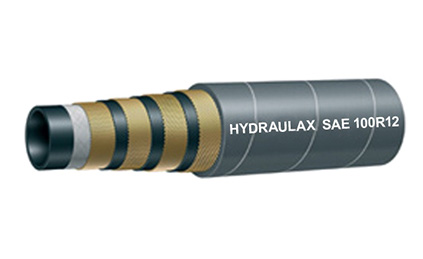

SAE 100 R12

Inquire Now Previous

Next Product

Product Detail

Inner tube:Oil-resistant synthetic rubber

Reinforcement: 4 spiral layers of high-tensile steel wire

Outer cover: Abrasion and ozone-resistant synthetic rubber

Temp. range: -40°C to + 100°C Max.120°C intermittent

SAE 100 R12 Hydraulic Hose is recommended for hydraulic system service with petroleum and water-base fluids, or general industrial service. Long-lasting cover is suitable for many mobile hydraulic applications.

Idea for high-impulse applications

No skiving required

Can be used with crimp fittings or available SAE 100R12 field-attachable fittings

Available sizes from 3/8" to 2" ID

Product Number	Hose ID		O.D.	Max W.P.		Min B.P.	Min B.R.	Weight
Product Number	mm	in	mm	Mpa	psi	psi	mm	kg/m
R12-10	10	3/8"	21	28	4061	16244	130	0.59
R12-13	12.5	1/2"	24.6	28	4061	16244	180	0.77
R12-16	16	5/8"	28.2	28	4061	16244	200	1.04
R12-19	19	3/4"	31.5	28	4061	16244	240	1.2
R12-25	25	1"	39.2	28	4061	16244	300	1.79
R12-32	31.5	1 1/4"	48.6	21	3045	12183	420	2.53
R12-38	38	1 1/2"	55	17.5	2538	10153	500	3.05
R12-51	51	2"	68.3	17.5	2538	10153	630	4.19
