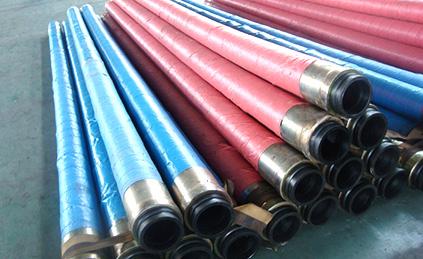

Fabric Concrete Pump Hose

Inquire Now Previous

Next Product

Product Detail

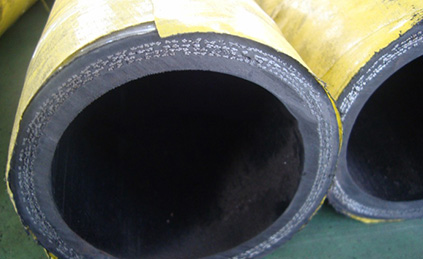

Structure: fabric reinforced concrete pump hose is composed of three parts: tube, reinforcement and cover.

Tube: resistant to abrasion synthetic rubber, principally chloroprene rubber.

Reinforcement: multiple layers of high quality polyester cord.

Cover: resistant to abrasion, weather, ozone and corrosion synthetic rubber, mainly chloroprene rubber.

Temperature range: -30°C to +80°C.

Inner diameter: 2" to 5" (51.0mm to 127.0mm).

Outside diameter: 73.8mm to 166.0mm.

Working pressure: 55 bar to 80 bar.

Application of fabric reinforced concrete placement hose:

Fabric reinforced concrete placement hose is mainly used to convey highly abrasive concrete in concrete placement industry, such as buildings, bridges, tunnels, beams, subways and swimming pools.

Hose code	Hose type	Specification (ID - layers)	I.D	O.D	Working pressure	Weight
Hose code	Hose type	Specification (ID - layers)	mm	mm	bar	kg/m
FC-01	Super textile cord reinforcement hose	2" - 2	51.0 ± 0.5	73.8 ± 1.0	55	2.6
FC-02		2.5" - 2	63.5 ± 0.8	87.4 ± 1.0	55	3.6
FC-03		3" - 4	76.0 ± 1.0	102.0 ± 1.2	55	4.6
FC-04		3.5" - 4	89.0 ± 1.0	122.0 ± 1.5	55	5.5
FC-05		4" - 4	102.0 ± 1.0	134.8 ± 1.5	55	6.8
FC-06		4.5" - 4	114.0 ± 1.0	153.0 ± 1.5	55	7.8
FC-07		5" - 4	127.0 ± 1.0	166.0 ± 2.0	55	9
FC-08	Premium textile cord reinforcement hose	2" - 4	51.0 ± 0.5	73.8 ± 1.0	80	2.6
FC-09		2.5" - 4	63.5 ± 0.8	87.4 ± 1.0	80	3.6
FC-10		3" - 4	76.0 ± 1.0	102.0 ± 1.2	80	4.6
FC-11		3.5" - 6	89.0 ± 1.0	122.0 ± 1.5	80	5.5
FC-12		4" - 6	102.0 ± 1.0	134.8 ± 1.5	80	6.8
FC-13		4.5" - 8	114.0 ± 1.0	153.0 ± 1.5	80	7.8
FC-14		5" - 8	127.0 ± 1.0	166.0 ± 2.0	80	9
