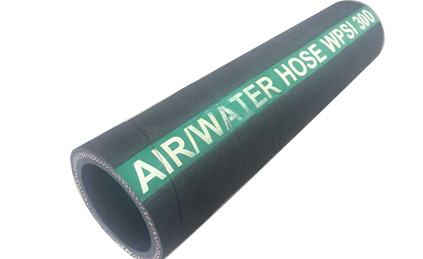

Air Hose

Inquire Now Previous

Product Detail

Application:Delivering industrial compressed air, has a wide range service in industry manufacture, mining , construction project and air tools.

Characteristics: flexible, aging-resistance, ozone resistance

Working temperature: -20 TO 80 ℃

Delivery cycle: As your order(2000 meters per day).

Type of shipping: Tianjin port or Qingdao port.

Safety factor: 1:3

Notes: Not bend over bending diameter ,not squeeze over, Avoid colliding flange surface.

Technical parameters:

Hose lining: SBR

Reinforcement layer: tire cord with helix wire

Cover rubber layer: SBR and CR blend

ID		OD		WP		BP		Bending Radius	Plies	Weight	Length
mm	inch	mm	inch	Mpa	bar	Mpa	bar	mm	B	kg/m	m
10	3/8"	18	3/4"	3	30	9	90	130	1	0.3	20-50
12	1/2"	23	7/8"	3	30	9	90	180	1	0.46	20-50
16	5/8"	26	1"	2.5	25	7.5	75	210	1	0.53	20-50
19	3/4"	29	1-1/4"	2.5	25	7.5	75	240	1	0.6	20-50
22	7/8"	32	1-1/4"	2	20	6	60	280	1	0.8	20-50
25	1"	35	1-2/5"	2	20	6	60	375	1	0.93	20-50
32	1-1/4"	42	1-5/8"	1.5	15	4.5	45	420	2	1.25	20-50
38	1-1/2"	48	1-7/8"	1.5	15	4.5	45	500	2	1.47	20-50
45	1-3/4"	56	2-1/4"	1.2	12	3.6	36	630	2	1.76	20-50
50	2"	64	2-1/2"	1.2	12	3.6	36	630	2	1.92	20-50
57	2-1/4"	70	2-4/5"	1	10	3	30	855	2	2.1	20-50
64	2-1/2"	78	3"	1	10	3	30	960	2	2.56	20-50
76	3"	90	3-1/2"	0.8	8	2.4	24	1140	2	2.96	20-50
90	3-1/2"	106	4"	0.6	6	1.8	18	1350	2	3.7	20-50
100	4"	120	4-4/5"	0.6	6	1.8	18	1530	2	4.3	20-50
NOTE: We can produce any specification and property according to customers is requirements.
